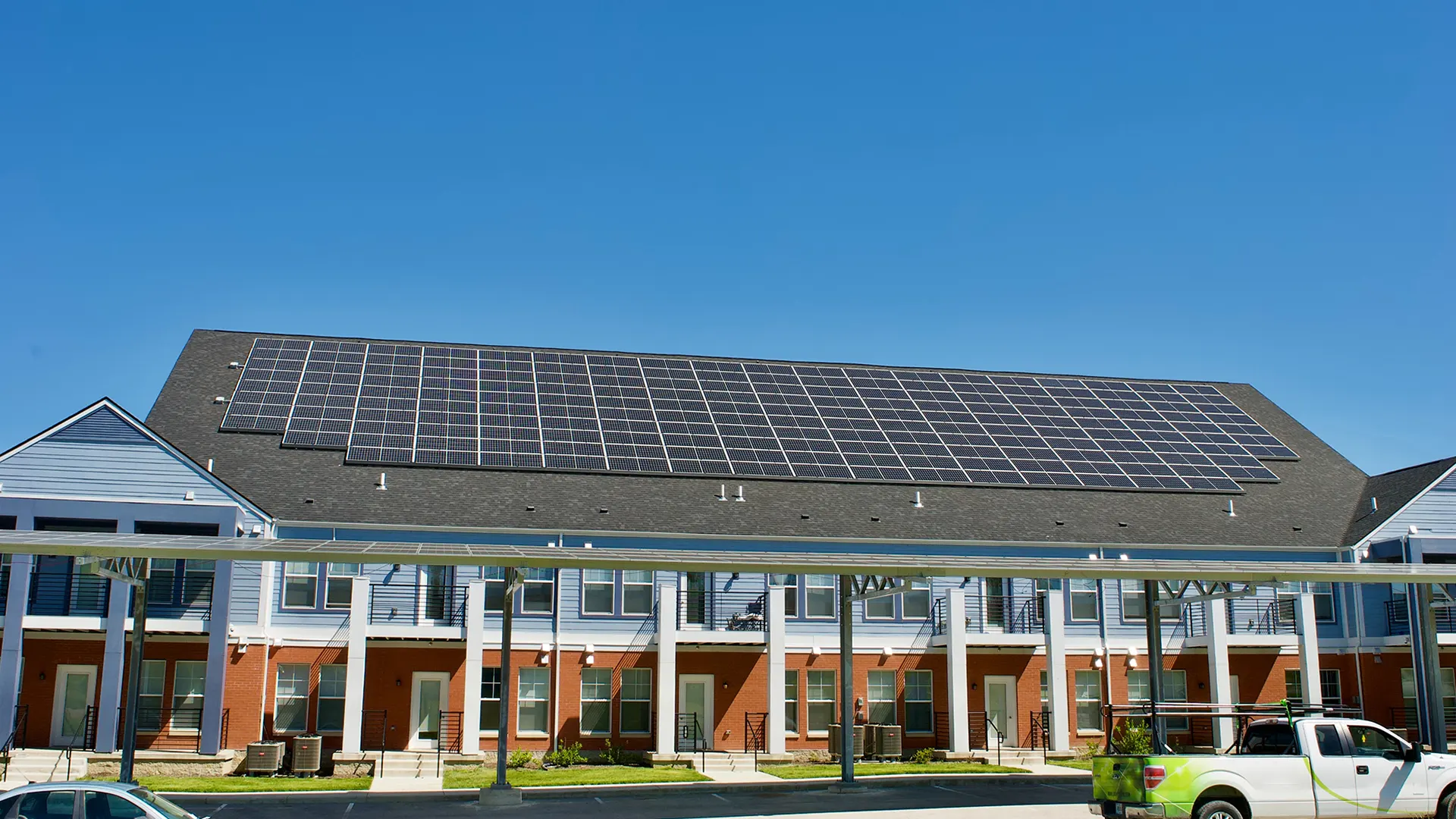

Roof Mounting System

Solar roof mounting systems include rails, rail splice kits, L-feets and other accessories

Lightweight, easy transportation and installation, safe construction. Maximum pre-assembly, saving construction time and labor cost.

Product Parameters

Brand

HH

Application

Roof

Type

Iron roof/Tile roof/Flat roof

Material

Aluminum 6005-T5/Carbon steel Q235B

Warranty

10 years

Service Life

25 years

Certification

CE/SGS/ISO9001/ISO14001/ISO45001/OHSAS18001

Wind load

60m/s

Snow load

1.4kn/㎡

DESCRIPTION

Lightweight, easy transportation and installation, safe construction. Maximum pre-assembly, saving construction time and labor cost.

Using aluminum alloy 6000 series with anodized surface treatment, high waterproof performance, strong corrosion resistance and salt tolerance.

Environmental protection, suitable for variety of geological conditions. It is durable and recyclable. Effectively combine power generation and lighting equipment, and maximize the release of energy.

DESCRIPTION

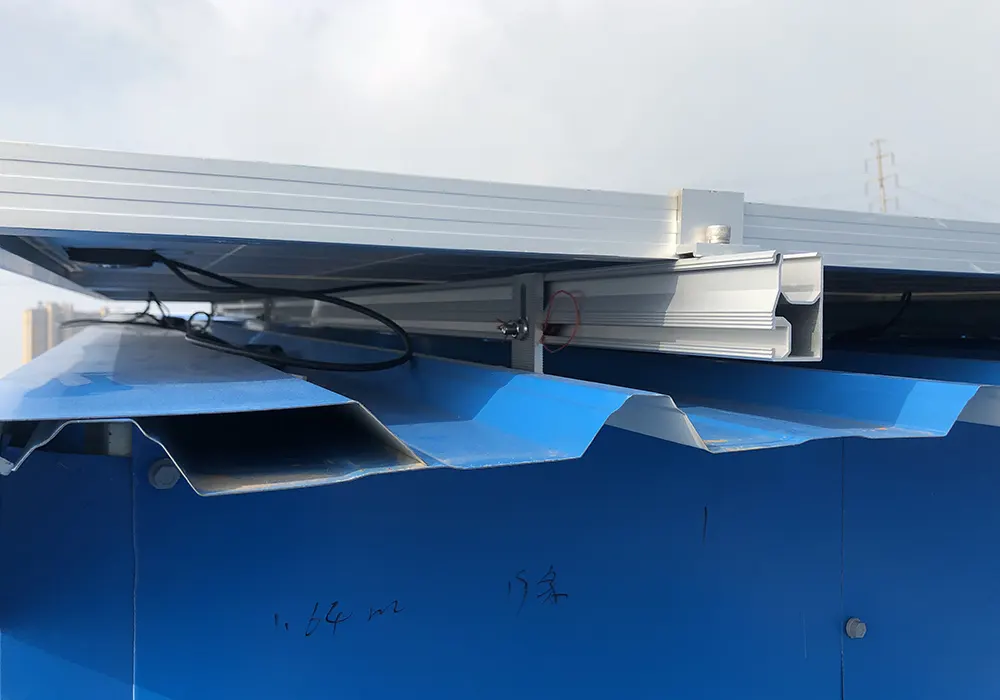

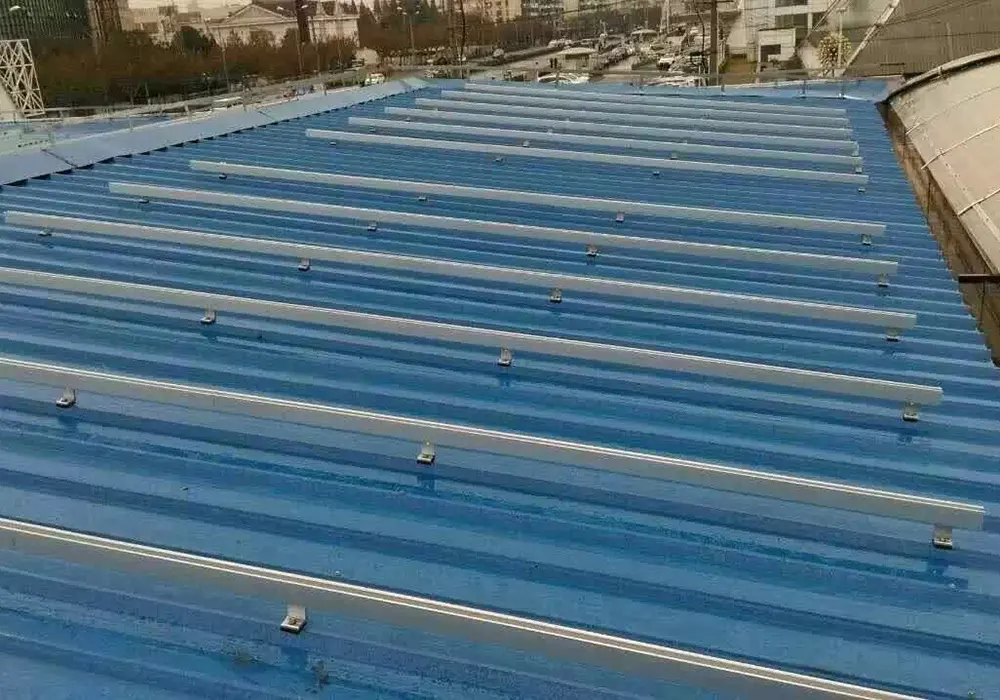

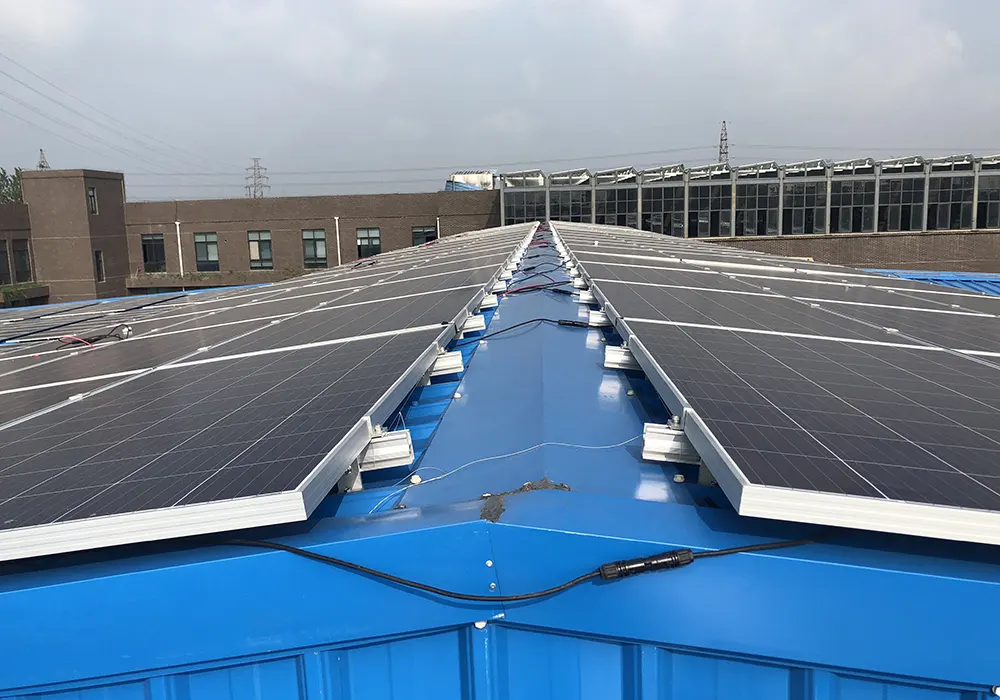

The variety of system combinations, like standing seam clamps, trapezoidal clamps or angle chi clamps, allows it to be connected quickly to all rail components, making mounting on a folded seam roof particularly easy. It offers a secure fastening without penetrating the roof sheets, ensuring maximum stability with minimum weight.

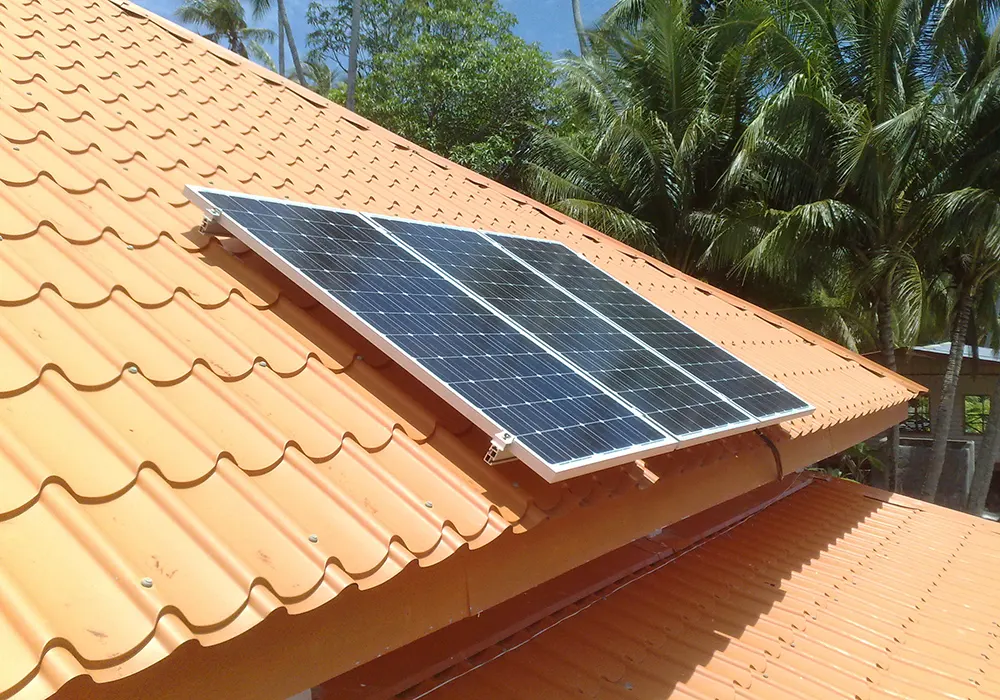

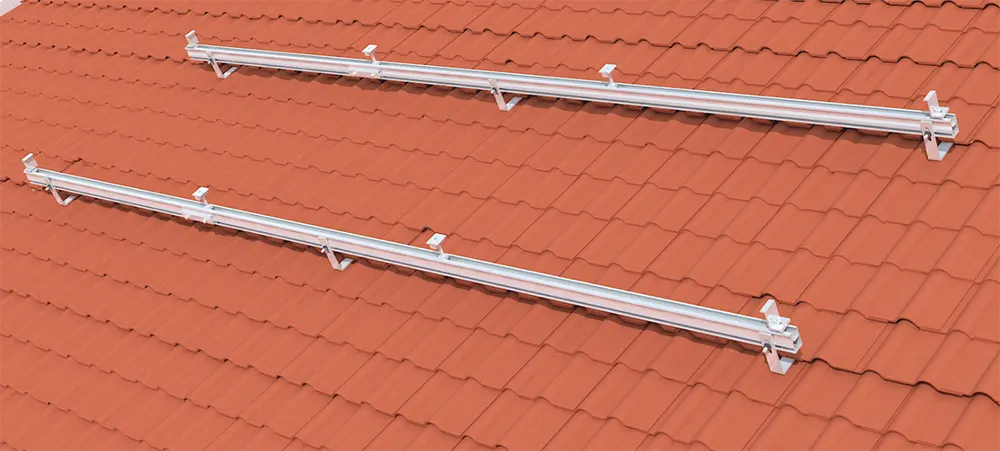

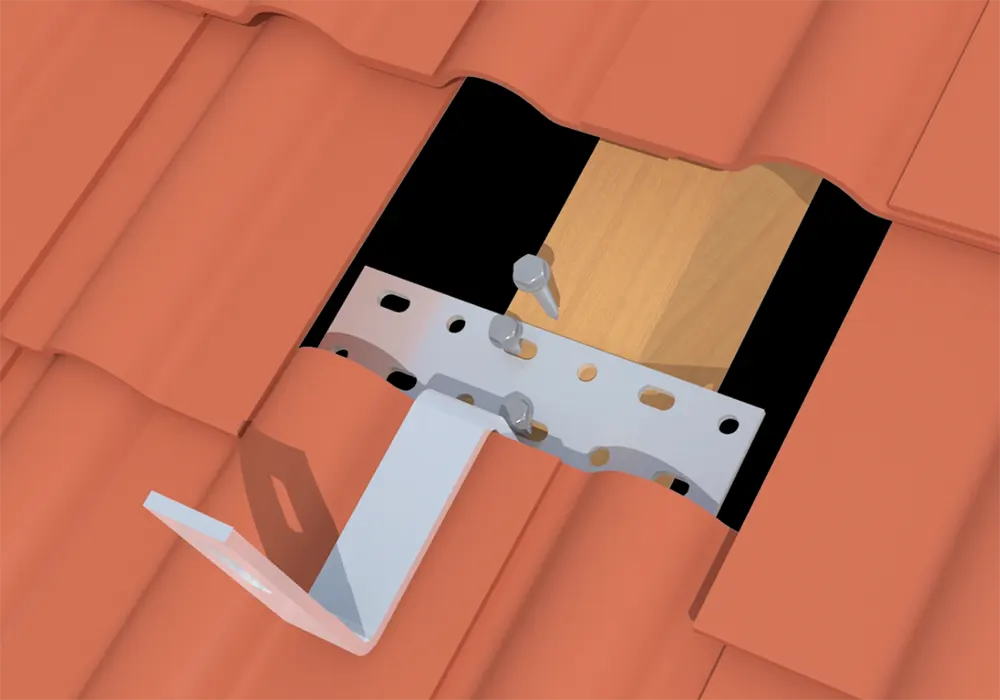

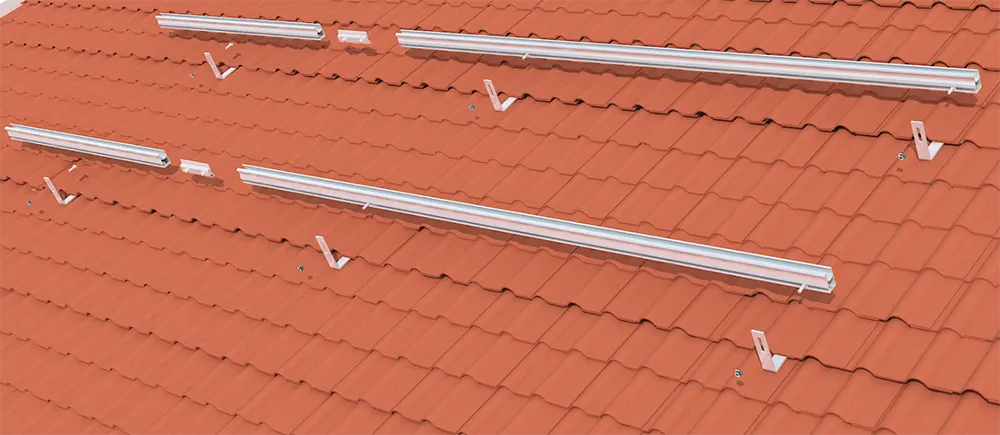

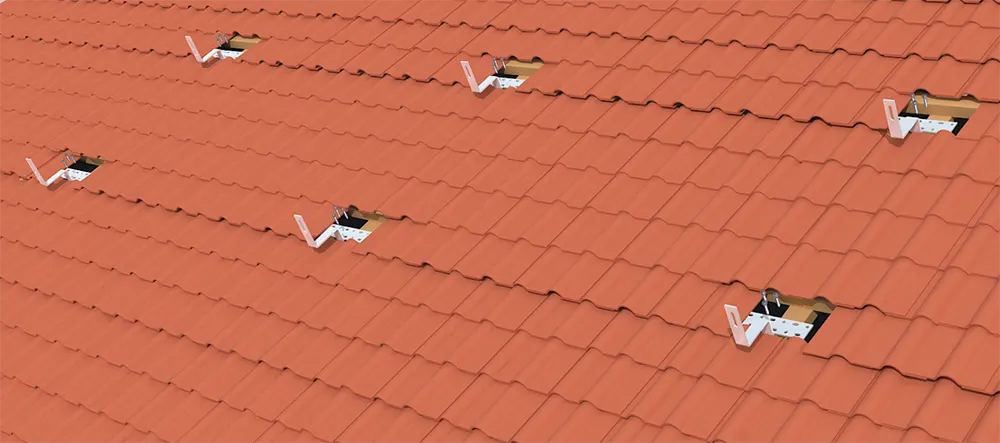

Pitched Tile Roof Mounting is suitable for installing framed and frameless modules on the pitched roof with high strength and excellent stability. Different highly-resistant hooks are compatible with various tile roofs, making it suitable for a wide variety of climatic zones.

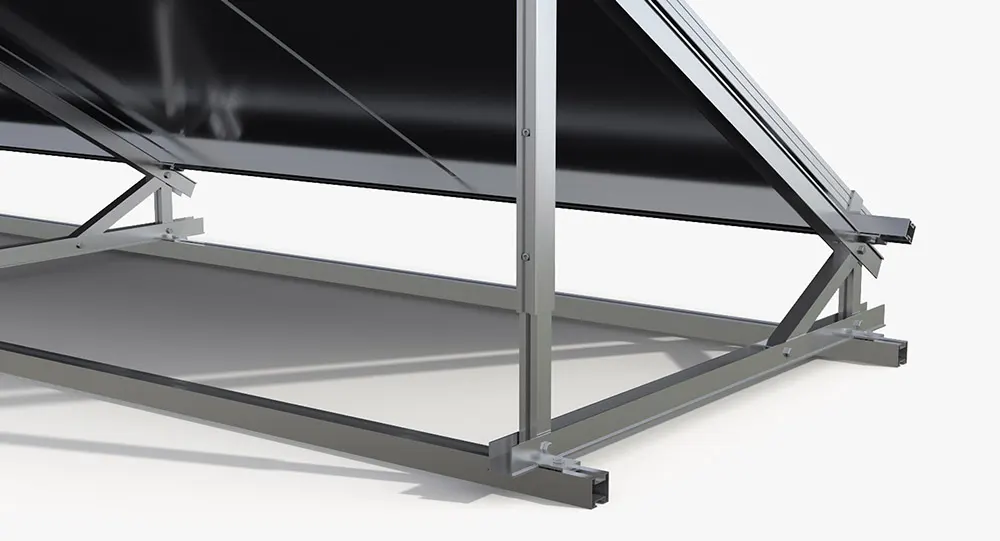

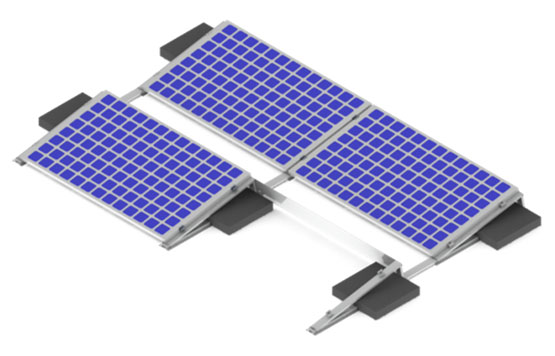

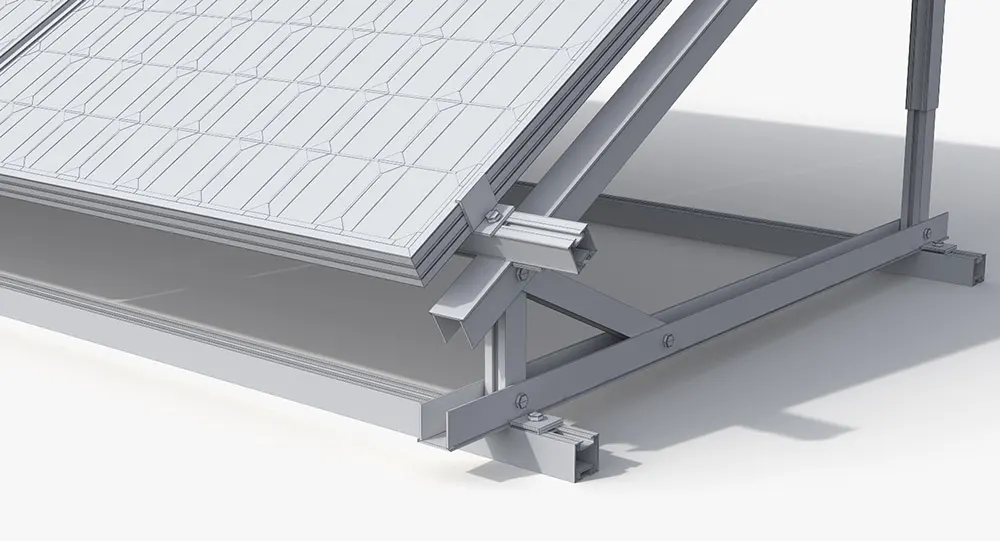

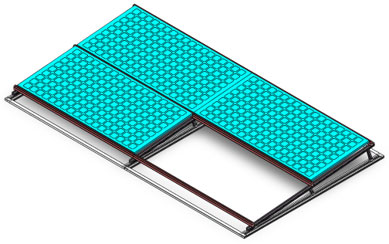

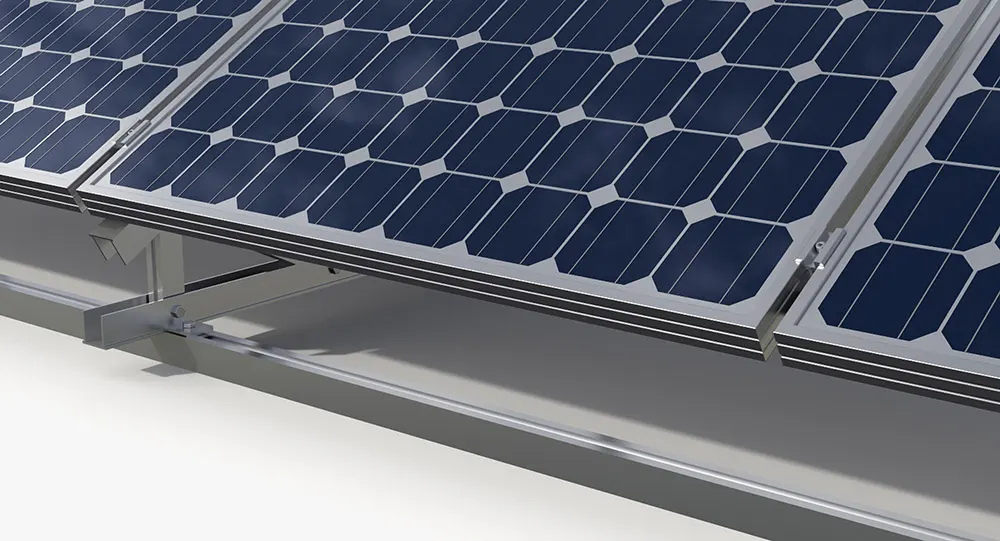

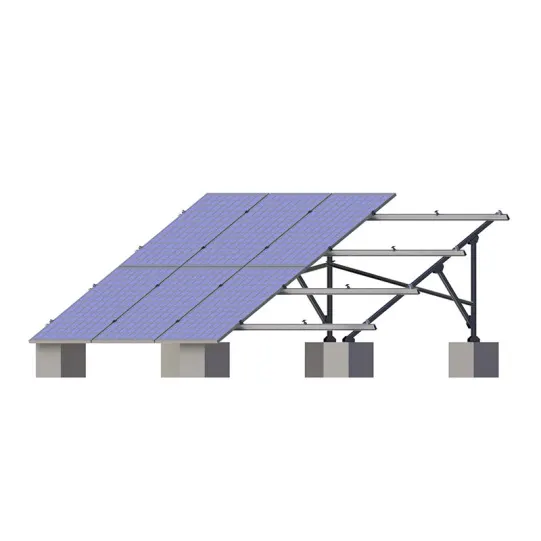

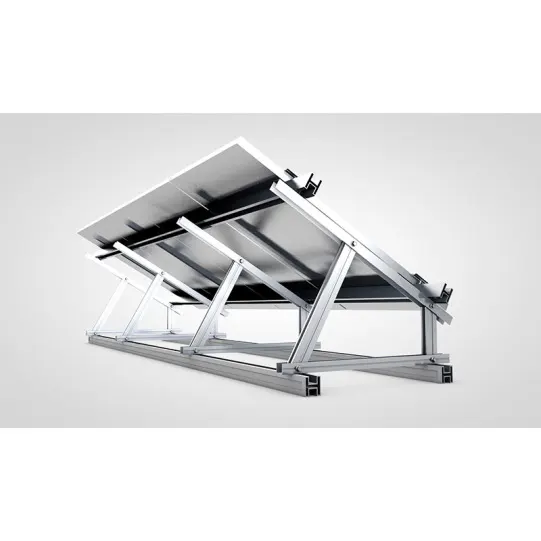

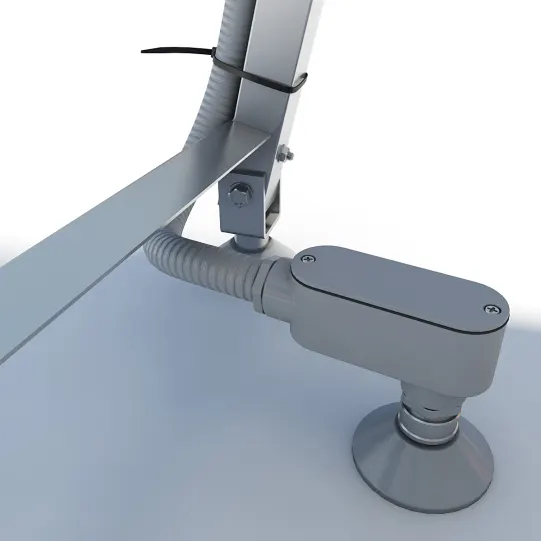

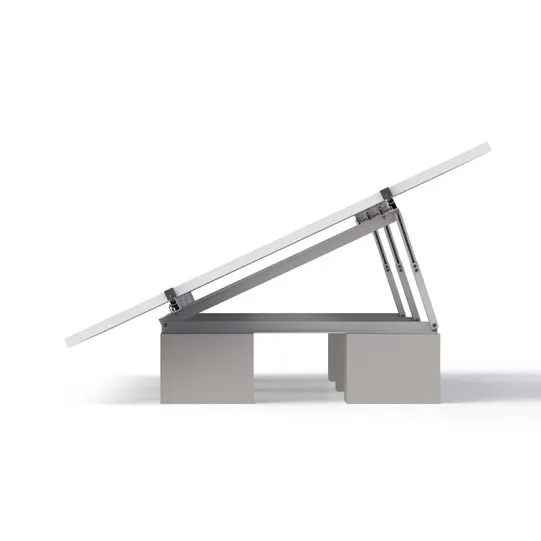

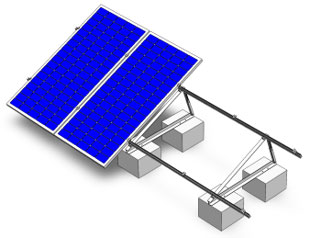

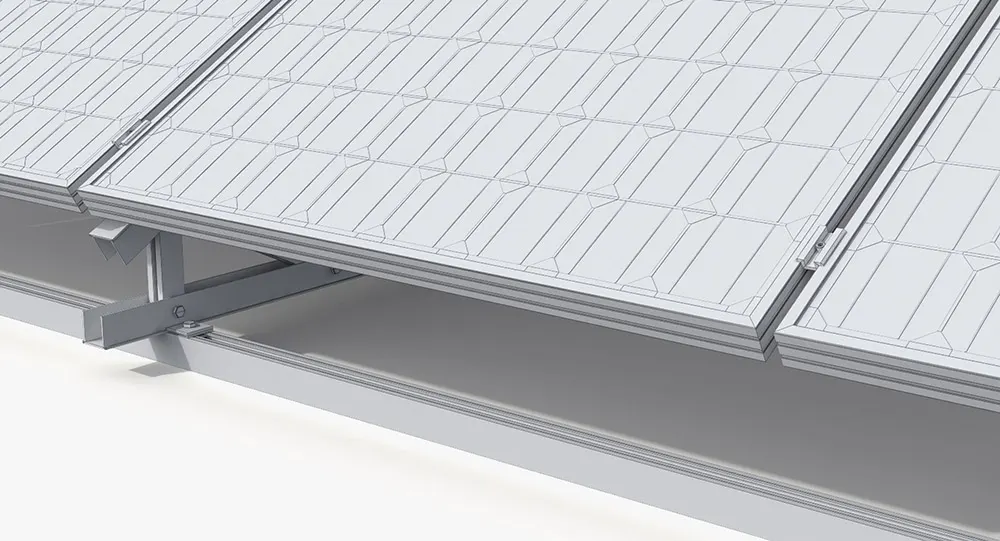

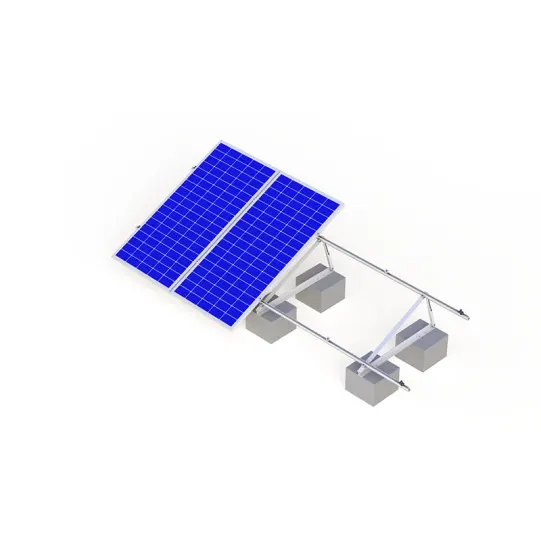

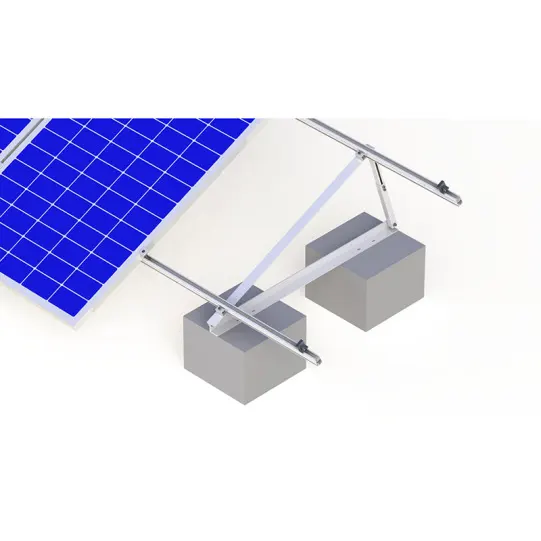

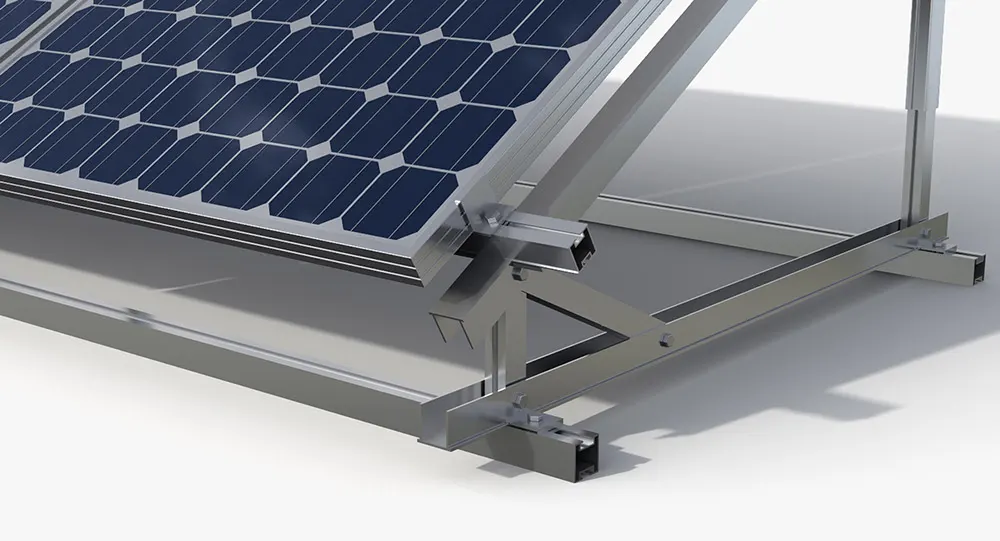

Flat roof moynting system can be installed on a roof clamp or penetrate into a concrete base, metal sheet, or concrete as ballast. The foldable design allows for easy transportation, cost-effective warehousing, and easy mounting.
